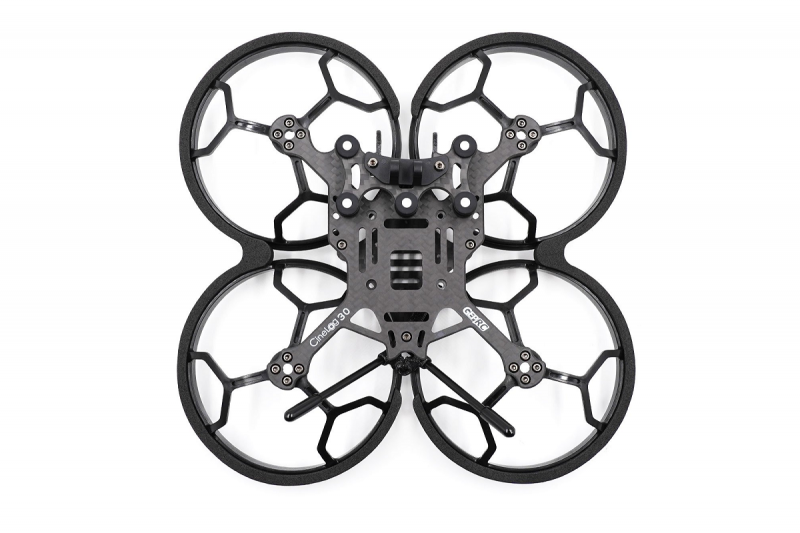

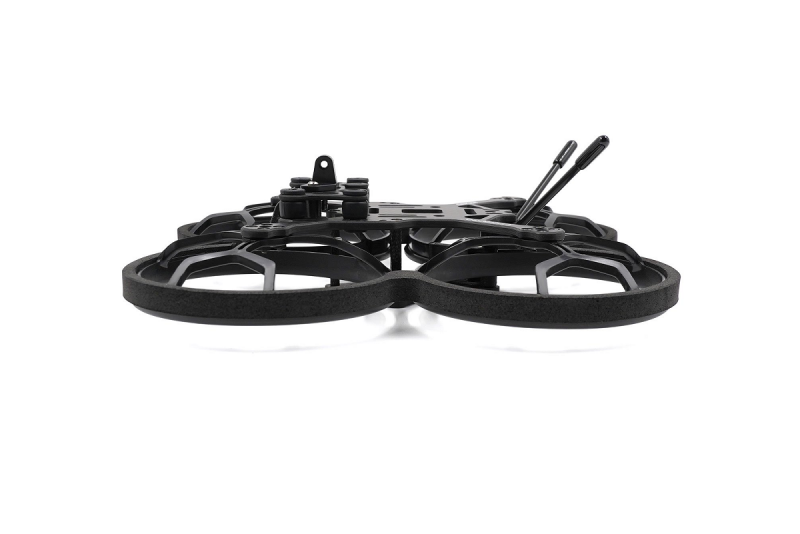

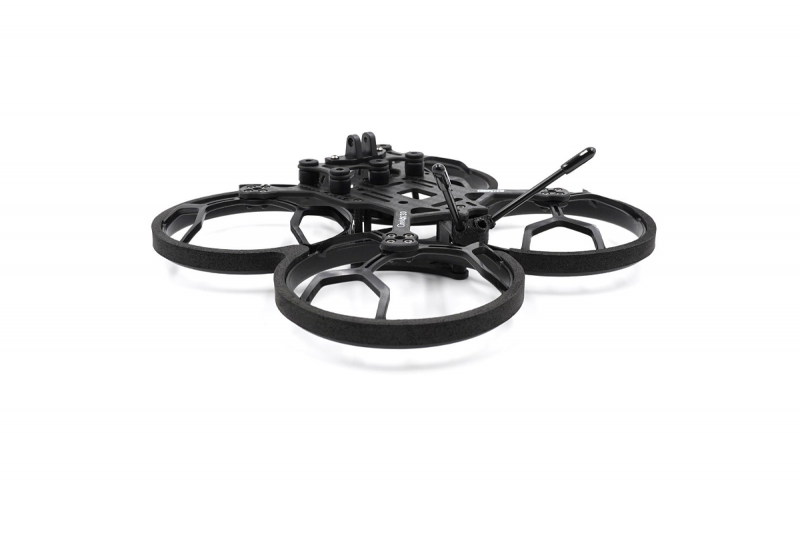

GEP-CL30 Frame Kits

Technische Daten:

Model: GEP-CL30

Motor to Motor: 126mm

Top plate: 2.0mm

Bottom plate: 2.0mm

Arm Plate3.0mm

FC hole position: 26.5mm x 26.5mm

VTX hole position: 20mm x 20mm

Motor hole position: 9mm x 9mm

Camera installation space: 14~19mm

Propeller guard internal diameter: 79mm

Suitable propeller size: 3 in propeller

Dimension: 180mm x 180mm x 38mm（Include propeller guard）

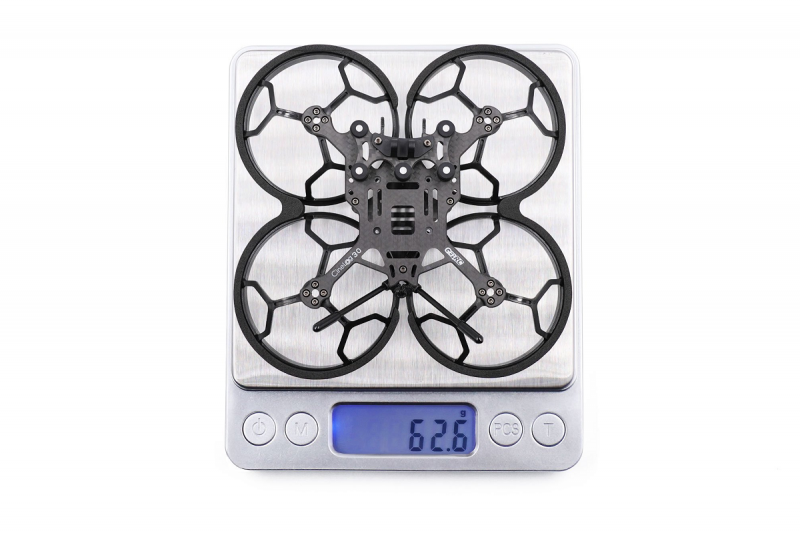

Weight:62.6g（Include propeller guard,GoPro camera mount,3D printings）

Eigenschaften:

Small size, light weight, good flying feel.

Improved the shock absorption design of the damping platform to provide a more stable shooting effect.

he 9x9mm motor holes can be installed with 1404-1408 motors, and the power output is strong with 3-inch blades.

GoPro Hero 8 naked camera and Insta 360 Go2 camera can be installed with GoPro camera mount.

A 3D print is designed for the receiver to facilitate the installation and binding of the receiver.

Include:

Carbon Plate:

1 x Top Plate 2.0mm

1 x Arm Plate 3.0mm

1 x bottom Plate 2.0mm

Screws:

2 x Knurled nut M2

4 x Aluminum Column M2x3.5×25

2 x M2x4mm cup head screws

28 x M2x6.5mm round head screws

10 x M2x8mm round head screws

7 x M2x9mm round head screws

4 x M2x10mm round head screws

1 x M2x12mm cup head screw

4 x M2x16mm cup head screws

1 x M2 Rivet nut

4 x M2 Lock nuts

8 x M2 Iron nuts

8 x M2 * 6.5mm damping rings

9 x damping platform rings

3D Printings:

1 x 19x19mm Camera Mount

1 x VTX Antenna Mount

1 x TBS T-shaped Antenna Mount

1 x TBS NanoRX Mount

1 x Camera Protector

Injection Parts:

6 x 3 in Propeller Guard

1 x GoPro Camera Mount

Other Parts:

4 x EVA Damping Ring of Guards

2 x 3M Double Tapes

2 x Silicone Pads

2 x Landing Pads

1 x M15x200mm Battery Strap

1 x M15x150mm Battery Strap

1 x L-shaped (1.5mm)

1 x Antenna Tubes

Artikelnummer: GEP-CL30FRAME
